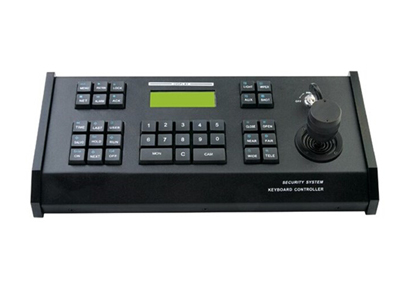

The main characteristics of:
The metal shell, computer keyboard key design
Liquid crystal display Chinese / English
A self check function
A joystick parameter error correction function
Communication RS-485 interface with automatic 1500W lightning protection, short-circuit protection restoration design
The monitor / camera control
Pan / tilt / camera / auxiliary equipment control
The camera preset settings / call control
DVR control
The keyboard main / auxiliary control work mode
Built-in control protocol, which can control different manufacturers ball machine
Has the fastball PTZ speed regulation, a plurality of cruise, alarm setting function
Real time display of the working state of the decoder and the matrix
With cloth / Chefang settings for the alarm, query the status display function
The alarm device can send out alarm when the keypad buzzer warning and alarm display area
The lock has the function of login and keyboard operations manager
A surge protection measures and anti lightning interference Design
Technical parameters:
Model
The specification of AD2813 liquid crystal display simplified Chinese / English simplified Chinese / English
Monitor control 1-99
Camera control 1-1024
Three dimensional (joystick left / right, up / down, zoom) two-dimensional (left / right, up / down)
Lens aperture: on / off, focus: the near / far and wide angle zoom: / telescope
Camera peripheral defrosting: on / off switch, wiper: on / off switch, auxiliary switch 1: on / off switch, auxiliary switch 2 on / off
PTZ control / left / right, scanning limit setting, automatic scanning, scan pattern, automatic cruise
Preset control deposit / adjust the preset position and preset parameter settings, see the guard
Cloth / Chefang settings, alarm query the status display and alarm record
DVR control quantity: 99 sets; control protocol: according to customer requirements can be written
Control protocol CY code protocol (can choose other ball machine protocol, such as PELCO-P, PELCO-D etc.)
Communication interface type: RS-485
Rate: 1200/2400/4800/9600bps
The environmental conditions of temperature of -10 DEG C ~ +50 DEG C, humidity is less than or equal to 90% (without condensation)
Power supply AC/DC9V
Power 5W
Size 375mm (W) * 70mm (H) * 171mm (D)
