video splitter can be to a video input signal is divided into multiple video output signal, or to a video input signal is divided into two
Frequency output signal. With special video operational amplifier, video signal can be used to achieve a certain phase correction.
Phase distortion in video transmission line. Video Splitter is entertainment, audio-visual, video equipment, monitoring system.
The single channel video assigner to will a video signal distribution for multi-channel video signal output for multiple video equipment used at the same time.
The bandwidth, peak - peak - peak voltage and output impedance of each channel of the video signal are consistent with the input signal format, for other visual
Frequency processor.
] four channel video assigner, multi input video assigner reduce the number of single distributor, can reduce the volume of the equipment and improve the stability of system.
Qualitative. The four channel Video Splitter is capable of assigning a video input of each channel to the same video output as the input of the two channels.
It uses video processor.
] eight channel video assigner, multi input video assigner reduce the number of single distributor, can reduce the volume of the equipment and improve the stability of system.
Qualitative. The eight channel Video Splitter is capable of assigning a video input of each channel to the same video output as the input of the two channels.
It uses video processor.

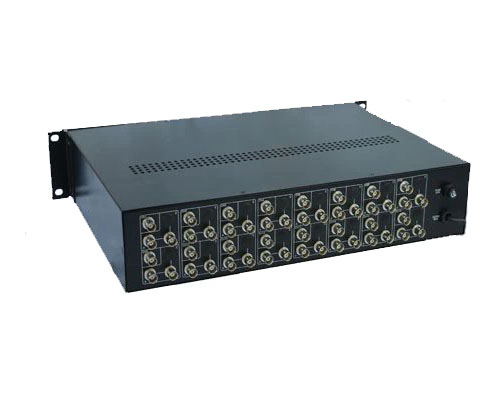

The 16 channel video assigner, 16 completely independent video input signal is divided into 16 groups of three channel video output signal.
Equipment characteristics:
The black and white video, color compatibility
The way video input signal is divided into multiple video output signal
The distribution of output with automatic phase correction
The video flat frequency response
The multiple devices can be cascaded
Equipment parameters:
Device type:
AD2916-32
Power supply:
6W/AC220V+-10%/50Hz
Video input:
16 Road
Video output:
16 Road
Video signal to noise ratio:
>60dB
Video bandwidth:
12MHz (-3dB)
Ambient temperature:
-10oC~55oC
Ambient humidity
<=90%RH (no condensation)
Dimensions:
480 (L) *310 (W) *89 (H) mm
