Product Name： |

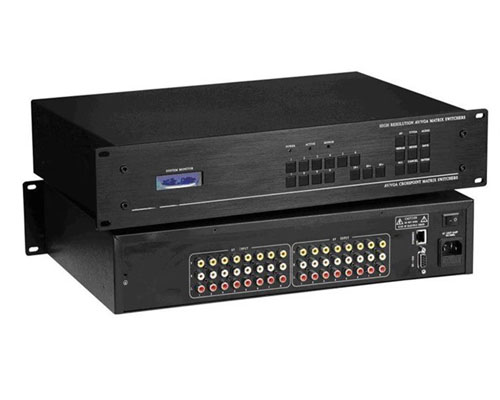

AV matrix model AD-AV8X8 |
|
Description： |
|
|
Introduction：
|
Technical parameters:
Power supply < 50 w AC220V plus or minus 10% / 50 hz
Video input 1 vp - p (75 ohm load, imbalance)
Video output 1 vp - p (75 ohm load, imbalance)
Video signal to noise ratio (SNR) 50 db (weighted)
Video isolation degree 50 db (weighted)
Video bandwidth 150 MHZ (- 3 db)
Differential phase typical value is 2%
Differential gain typical value is 2%
Video system NTSC and PAL system
Audio input amplitude 0-2 - p vp
Audio output power 0.5 W (8 W)
Audio signal to noise ratio (SNR) 48 db (weighted)
Audio isolation degree 48 db (weighted)
Audio bandwidth 20 KHZ (- 3 db)
Switching time < 1 millisecond
Audio interface video: BNC connector jack/audio: RCA socket
The environment temperature - 10 ℃ ~ 55 ℃
Environmental humidity acuities 90 ℅ RH (no condensation)
External dimensions 310 mm (L) x 480 mm (W) x 89 mm (H)
Heavy volume 4 kg (full of module about weight)
|
|
