Product Name： |

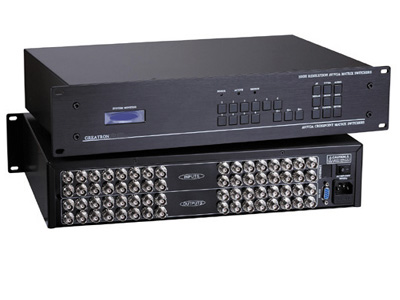

SDI matrix 32 series models: AD-SDI32X32 |
|
Description： |
|
|
Introduction：
|
1, the use of Samsung S3C2440 processor, running faster, more stable system
2, the use of FPGA programmable logic array circuit XC3S200A, performance is more stable;
3, using the United States DM355 company TI digital video processing chip, the image is particularly clear;
4, the maximum data rate up to 4.5Gbps ultra high bandwidth transmission;
5, the signal is used to transmit the distortion of the long distance transmission technology;
6, the use of digital synchronous recognition processing (DSIP) technology
7, support the seamless integration of CMMAW technology and CCSEB power management technology;
8, the use of 3D new blue matrix display, full Chinese display working state
9, built-in round robin function, can set the interval time and channel
10, built-in 32 set of scene storage functions, can be directly in the panel operation
32, 11 SDI digital audio and video signal input; 32, 16 SDI digital audio and video signal output;
12, with automatic balancing technology, support HDTV compatible;
13, SDI digital audio and video input and output terminal using BNC mother interface;
14, special port, can directly and macro control wireless touch screen connection, plug and play;
15, the whole chip SMD process, the specific function of ESD electrostatic protection;
16, macro control series of SDI digital matrix switcher is specifically for SDI digital audio and video signal switching of display and design intelligent HD matrix switching equipment for the brightest SDI digital 17, audio and video output channel to any channel on, the series of products are widely used in large screen projection display engineering, audio-visual teaching, command and control center, multi-media conference room and other places;
18, this product is a smart device with high reliability, the design adopts fault tolerance technology, and adopts the high anti-interference ability of the communication interface circuit to ensure the reliability of communication, with infrared remote control function and RS232 communication function, users can easily complete the demonstration process of signal switching;
19, the product with the power is now the site to switch memory protection, video synchronization or separation and switching functions, with RS232 communication interface, it can be convenient with the computer, remote control system or a variety of remote control equipment (such as macro control and other control system) with the use of;
20, the global wide voltage design, can adapt to the exchange of 100 ~ 240V, 50/60Hz;
21, high quality, mass production, there is a high compatibility and stability, has a high cost
SDI video
Application standard 259M SMPTE, 292M SMPTE424M, ITU-R, BT.601 SMPTE, BT.1120 ITU-R
Video format SDI\1.485 Gbps HD-SDI 2.97Gbps and 3G-SDI 270Mbps
Data frequency 19Mbps to 4.5 Gbps
Amplitude 0.8Vp-p 10%
Rise / fall time 400-700ps
Washed over <10%
Mobile <540ps 10%
Min / max level to 0.5V 1 Vp-p
The maximum transmission range of 3G:140m.HD:200m.SD:400m recommended the use of certified SDI professional cable such as: 1694A Belden
SDI video input
Interface BNC interface
Return loss DC@1MHz, to 1.5GHz <-15dB
Direct current compensation 5mV
Impedance 75
Output impedance 75
SDI video output
Interface BNC interface
Output impedance 75
Impedance 75
Return loss DC@1MHz, to 1.5GHz <-15dB
Direct current compensation 5mV
RS-232 control interface
Serial control interface 9-, RS-232 pin mother D type interface
The baud rate and protocol baud rate: 9600, 8: data bits, stop bits: 1, no parity
Serial control port 2 = TX, 3 = RX, 5 = GND
KEYBOARD control interface (optional)
Control interface 4 pin Phoenix
Using the way and expand the keyboard KT-B8W supporting the use of
Control port +5V=DC5V, + = -=DATA-, GND = DATA+ = signal
Ethernet control interface (optional)
Ethernet control interface RJ-45 master interface
Ethernet control protocol TCP/IP
Ethernet control rate adaptive 10M or 100M, full duplex or half duplex
Gauge
Power 100VAC ~ 50/60, Hz 240VAC, the international adaptive power supply
Power: 60W
Temperature storage, use temperature: -20 ~ +70 ~ C
Humidity storage, using humidity: 10% ~ 90%
Mean time to failure interval of 60000 hours
Warranty 1 years free warranty, life-long maintenance
Product configuration center
Model SDI-3216 SDI-3232
Size (MM) 482 long *282 wide *90 high (2U) 482 long *282 wide *90 high (2U)
Weight (KG) 8.1KG 8.6KG
Product configuration matrix switcher host *1
Infrared remote control *1
Instruction *1
Software *1
Computer serial line *1 |
|
