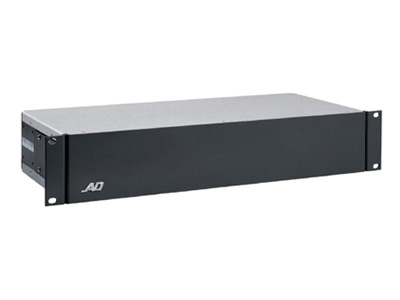

Product introduction
AD2083 series of decoding converter with AD matrix switch / control system with AD,the control code into with other manufacturers of receivers, camera, dome cameracompatible control code format.
Generality
Matrix system to replace the available AD matrix system but are still in use, or not using a AD receiver, tilt or spherical camera other existing company. AD matrix /controller and the receiver performance, can be used together with other manufacturers of receiver and camera, dome camera, reached the requirements,enhance the performance of the whole system and the
Efficiency.
The system size increases
AD matrix system can use one or more code converter, control receiver / camera,dome camera scene more, design ability makes the system size is larger than the original equipment manufacturers.
The AD interface
With the AD2l50, ADl68, AD1024 series of matrix system is used together. The use of AD2150 can control up to 32 cameras to the scene, the use of AD1024 can control up to 1024 cameras to the scene.
General installation
In the cabinets can be installed before, can be wall mounted or desktop installation.
Compatibility
Please the receiver to the company in consultation with various manufacturers and head, spherical camera compatible product catalog.
Characteristic.
The unique function of the control console, aperture, zoom, zoom, auxiliary equipment and each receiver or ball type camera.
Alarm contact state the receiver or camera, dome camera sent to the AD2083 through the RS-422, through the RS-232 to the AD matrix system, alarm call for pre programmed. A C relay and the alarm is triggered, the start control external relatedalarm device.
● DIP switches for connection to control each equipment up to 4 separate camera.
● RS-422 data format, for the receiver, spherical camera control.
● DIP switch 1200, 2400, 4800, 9600 baud rate, for RS-485 and RS-422 interface.
The LED is used to display the power, control and alarm status code. |
