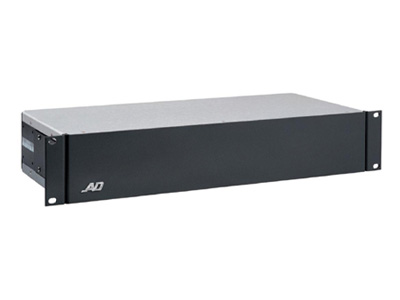

AD2096 has 64 contact circuit, the alarm input into the alarm signal code, for AD matrix switch / controller. Matrix switch / control programmed, can automatically send alarm camera switching to a predetermined monitor, start instruction and auxiliaryfunction calls the preset, in response to the alarm contact. Any alarm contact starts,triggering a C relay, and other external devices using start. The D1P switch is used toselect the contact number (64 A), normally closed or open contacts (8 for each group), adjusting the interface baud rate. Multiple devices can be cascaded through the RS-232 line, increase alarm input capacity. The alarm device can be used together with the AD2l50 series, ADl68, AD1024 series matrix switch / control. This equipment can be installed in the cabinet after the general, and wall and desktopinstallation type.

● input: 64 alarm contacts (short circuit to ground or 0~5V logic level), screw terminal connectors.

● output: RS-232, baud rate optional.

● voltage: 120V / 60Hz (230V / 50Hz models, in the original, followed by the letter X)

● power: 8W (nominal)

● installation: the machine frame (GIR) or desktop

● size: 89 (high) x 432 (W) x 203 (long) mm

● weight: 1.4Kg
