Product Name:

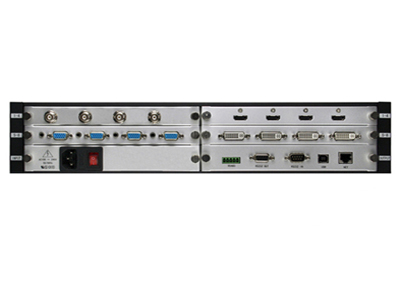

Mixed matrix card / 8 series models: AD-HD08X08

Description:

Introduction

Product Description: AD-HD08X08 is a modular hybrid matrix A can add the 2 input signals and 2 output signals card card. It supports a variety of digital and analog signal card combination, and the cross switching between various signal. It is a complete modular processing scheme provides mixed signal, and can be used for educational institutions, control center, conference rooms, multimedia classrooms and other occasions.
Product features:
L has configurable input / output signal module matrix host card 4 * 4 to 8 * 8 audio switch support
L supports all commonly used input / output signal card, and HDMI, YPBPR, composite video, SD/HD/3G-SDI, optical fiber, RJ45 network port, DVI/DVI with audio, VGA/VGA with audio (YPBPR, CVBS) in which the output signal of seamless SD/HD/3G-SDI, DVI, VGA board support. Signal card combinations into any matrix
Cross l switching real, signal format is not divided, can be arbitrary input switching to any output
L advanced EDID management, guarantee the maximum compatibility
L audio video independent switch
L support HDMI1.4, support 3D part model
L supports the integration of HDBaseT Technology
L supports a pair and optical fiber I/O signal transmission card
L instantaneous seamless handoff, comfortable and smooth operation
L built-in clock recovery, output enhancement function
L support according to the key points, RS232 control, TCP/ID control, compatible with third party control
L site Hot Swap and electrostatic protection (ESD),
L supports power protection, power is not lost and functional parameters setting
L international standard power support (AC100~AC240V, 50/60Hz), security authentication
L compatible HDCP content protection protocol
The product parameters:
Video input and 2 MHD series input card
Input signal types HDMI, YPBPR, composite video, SD/HD/3G-SDI, optical fiber, RJ45 network interface, DVI/DVI band, VGA/VGA band audio audio
The video output of 2 MHD series input card
Output signal types HDMI, YPBPR, composite video, SD/HD/3G-SDI, optical fiber, RJ45 network interface, DVI/DVI belt, VGA/VGA belt, SD/HD/3G-SDI audio audio, DVI, VGA seamless seamless seamless
8 way stereo audio input, high frequency input, the standard 3.5mm stereo jack
8 way stereo audio output, high frequency output, standard 3.5mm stereo jack
Audio response of 20Hz~20KHz + 0.58dB
The common mode rejection ratio, 90db@20Hz~20KHz
The channel separation degree, 80db@1Hz
The total harmonic distortion 1%@1KHz, 0.3%@20KHz
Audio sampling bits per channel 18bit, 2 channel (L.Z)
Button control, RS232.TCP/IP control mode
The power consumption is 100AVC~240ANC, 50/60Hz; 50W
Size 423* deep 335* 133 (3U)
The weight of 5.3KG
