Product Name:

DVI input card

Description:

Introduction


数字、高清矩阵 2014-12-1 9:28:35

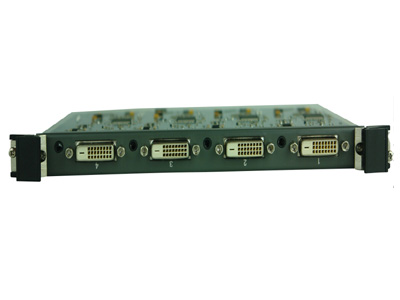

Product Description: AD-DVI-04 is a DVI input signal card, belonging to the MHD series of matrix. It has 4 DVI input interface, support for HDCP.
Product features:
L the output signal of the DVI card and the MMX series of the host matrix with the use of;
The highest l resolution up to 1080P, 1920*1200@60Hz, is fully compatible with HDTV;
EDID management l cash, can support HDCP
L compatible with HDMI signal
L support hot swappable, guarantee the friendly user experience.
AD-DVI-04
Product Description: AD-DVI-04 is a DVI output signal card, belonging to the MHD series of matrix. It is provided with 4 DVI output interface, and support HDCP.
Product features:
L the output signal of the DVI card and the MMX series of the host matrix with the use of;
The highest l resolution up to 1080P, 1920*1200@60Hz, is fully compatible with HDTV;
The L output enhancement
L far transmission distance 15m
L support hot swappable, guarantee the friendly user experience.
The product parameters:
Input card;
The input signal is 4 DVI signals
Input connector mother port db24+5/HDMI
The input level of T.M.D.S.2.9V/3.3V
The input impedance of 75 ohms
Output card;
The output signal of the 4 DVI signals
Output connector mother port db24+5/HDMI
Output level T.M.D.S.2.9V/3.3V
The output impedance of 75 ohms
Routine
Gain 0dB
Video signal 1 DVI1.0 standard DVI-D full digital T.M.D.S signals
The switching rate of 200ns (max)
The HDMI standard uses the HDMI1.3 standard
EDID and DDC management support extended display identification (EDID) and display shujiu channel (DDC) using the DVI and HDMI standards
HDPC management support high bandwidth digital content protection (HDCP) using DVI and HDMI1.3 standard
Broadband 30MHz (10.2Gbit/s)
The maximum time delay 5nS (+ 1nS)
Crosstalk <-50dB@5MHz
