Product Name： |

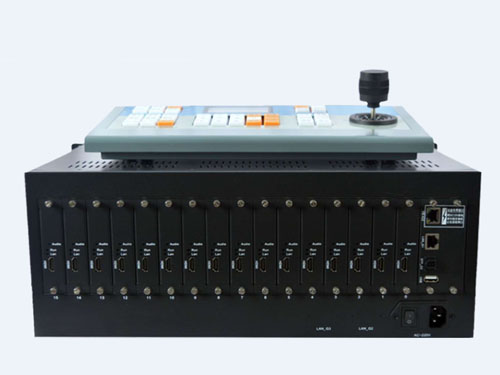

Decoding matrix / 9 channels |
|
Description： |
|
|
Introduction：
|
Output resolution 1920 * 1080 @ 60Hz / 50Hz / 1366 * 768 @ 60Hz
Number of connected network cameras: 512 sets of network cameras with 500W pixels and below
Decoding capacity (single screen) 1 picture = 500W and below pixels
4 picture = 200W and below 9 picture = 130W and below
16 picture = D1 and below pixels
Network interface 1 RJ45 100M / 1000Mbps adaptive Ethernet port
1 USB interface
Online upgrade online upgrade through management platform software or upgrade tools
The display response speed changes from camera a to camera B. the display speed is less than 1 second
Ball control response speed is less than 1 second
Power supply 220V
Power consumption ≤ 160W
Case volume standard 3U case: length, width and height 600 * 415 * 235mm
Package volume 600 * 415 * 280mm
Gross package weight 8.5Kg
Operating temperature - 10 ℃ - + 55 ℃
Working humidity 10% - 90%
◆ built in gigabit network switch motherboard
◆ only one gigabit network cable or one optical fiber is needed in the whole process, and the image is smooth without jamming
◆ with splicing function, ordinary TV sets can be displayed with multi screen splicing
◆ support the display of scrolling subtitles (such as welcome words, etc.) on the screen, and the font size and color can be customized
◆ signal can be windowed, stacked, stretched, roamed, cross screen, zoomed or displayed in picture at any position on the screen
◆ embedded platform software function, you can drag the camera IP address to any window in the system to decode and display
◆ the equipment can be completely separated from the computer, so simple, fast and convenient with the simulation matrix
◆ personalized management function, divided into ordinary user and senior user authority
◆ the function of automatic screen locking can be set for a period of idle time. After the screen is locked, you can only see the image, and you can only operate after you log in again
Adopt Linux operating system, stable and reliable operation, plug-in structure, convenient expansion and maintenance
◆ support different brands and different resolutions of webcam to decode at the same time
◆ the machine supports decoding of H.264 and h.265 network cameras with 5 million or less pixels, 100% restored camera original definition, and no image attenuation
◆ support real-time dual stream preview of video server, DVR, NVR, CVI video recorder, TVI video recorder, ahd video recorder, etc. of mainstream manufacturers
◆ the software supports 16 channels of video playback, fast forward and backward, dragging the timeline to select playback nodes, and downloading video files to the computer
◆ it can be connected to the network signal of HDMI / VGA encoder to decode the picture of remote computer or other HD video equipment
◆ it can manually add and automatically search the IP address of the webcam, support manual entry of RTSP video stream address, and accept the direct push of RTSP video stream by the third-party platform software
◆ compatible with 99% of the mainstream network cameras in the market such as Haikang, Dahua, universal vision, Tiandi Weiye, etc. with onvif network protocol, and cameras and ball machines, video servers, and various mainstream video recorders (NVR, DVR, xvr, ahd, CVI, TVI) from other manufacturers with onvif network protocol
◆ support three independent control ways: USB mouse, PC platform software and network control keyboard
◆ automatically bind the camera ID number for keyboard switching, and change the keyboard switching ID of corresponding IP as required
◆ built in database, and the user's setting parameters will be stored in the database
◆ built in virtual computer keyboard function, can use mouse cursor to edit letters or Chinese characters
◆ character overlay function, which can edit the corresponding regional information or name for the webcam
◆ each HDMI output port can be divided into multiple pictures, and each divided picture can switch any network camera signal display
◆ it can switch pictures in groups, multi screen automatic round trip, single screen automatic round trip
◆ support automatic splicing of images after power on, splicing mode can be customized
◆ support to save and call N-group splicing plan, support double-click splicing of any channel
There are 12 groups of scene memory functions, which can automatically cycle and display multiple scenes
◆ multi scene electronic map function is supported, and the image of this area can be displayed by hovering the mouse over the annotation
◆ optional network alarm host can realize audio-video linkage switching |
|
